Mulesoft MCD-Level1-Delta Exam Questions

Refer to the exhibits.

The main flow contains an HTTP Request in the middle of the flow. The HTTP Listeners and HTTP Request use default configurations.
A web client submits a request to the main flow's HTTP Listener that includes query parameters for the pedigree of the piano.
What values are accessible to the Logger component at the end of the main flow?

A. payload

B. payload
pedigree query params

C. payload
producer var

D. payload
pedigree query params producer var

Refer to the exhibit.

The main flow contains a Flow Reference for the child flow.
What values are accessible in the child flow after a web client submits a request to http://localhost:8Q81/order? color=red?

A. payload

B. payload
quantity var

C. payload
color query param

D. payload
quantity var color query param

Refer to the exhibit.

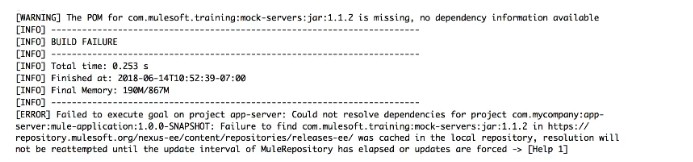

The error occurs when a project is run in Anypoint Studio. The project, which has a dependency that is not in the MuleSoft Maven repository, was created and successfully run on a different computer.
What is the next step to fix the error to get the project to run successfully?

A. Edit the dependency in the Mule project's pom.xml file

B. Install the dependency to the computer's local Maven repository

C. Deploy the dependency to MuleSoft's Maven repository

D. Add the dependency to the MULE_HOME/bin folder

Refer to the exhibits.

The orders.csv file is read, then processed to look up the orders in a database. The Mule application is debugged in Any point Studio and stops at the breakpoint.
What is the payload shown in the debugger at this breakpoint?

A. "none"

B. The entire CSV file

C. The database response

D. 100

An HTTP Request operation sends an HTTP request with a non-empty JSON object payload to an external HTTP endpoint. The response from the external HTTP endpoint returns an XML body. The result is stored in a target named the Result. What is the payload at the event processor after the HTTP Request?

A. The XML response body

B. null

C. The original JSON request body

D. A non-empty Java object

A web client submits a request to http://localhost:8081?accountType=personal. The query parameter is captured using a Set Variable transformer to a variable named accountType. What is the correct DataWeave expression to log accountType?

A. Account Type: #[flowVars.accountType]

B. Account Type: #[message.inboundProperties.accountType]

C. Account Type: # [attributes.accountType]

D. Account Type: #[vars.accountType]

Refer to the exhibits.

The main flow contains an HTTP Request. The HTTP Listeners and HTTP Request use default configurations.
What values are accessible in the child flow after a web client submits a request to http://localhost:8081/order? col or = red?

A. payload

B. payload
quantity var

C. payload
color query param

D. payload
quantity var color query param

Refer to the exhibit.

All three of the condition for the Choice router are true. What log messages are written?

A. Route 1

B. Route2

C. Route1, Route2

D. Route1, Route2, Default
